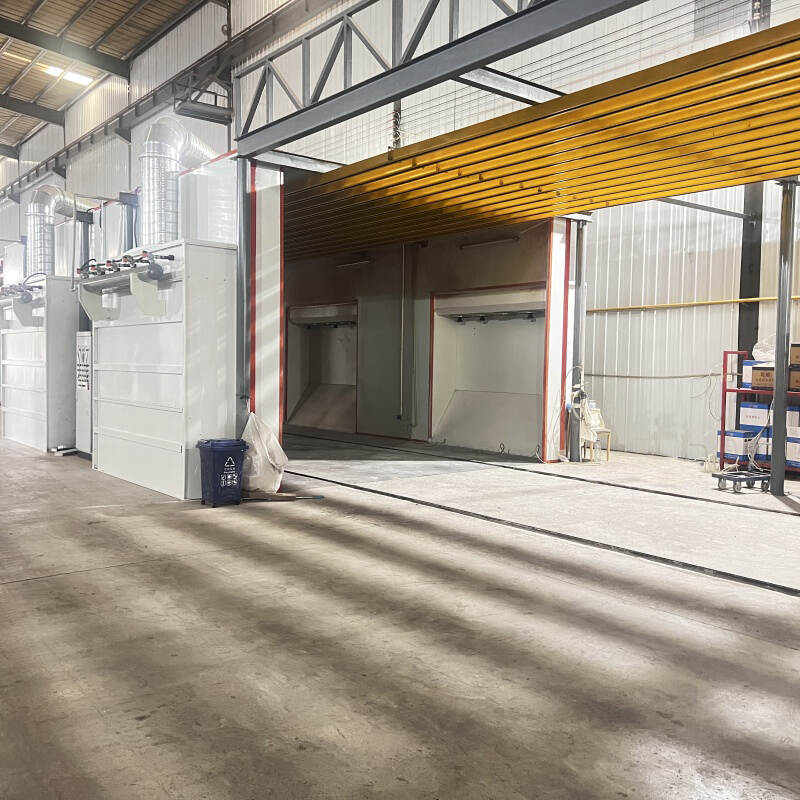

Water Curtain Spray Painting Booth
The Water Curtain Spray Painting Booth is a highly effective solution designed for capturing and removing paint overspray during manual or automatic wet paint applications. Using a continuous flow of water along a vertical curtain surface, this booth traps airborne paint particles and VOCs (volatile organic compounds), significantly reducing air pollution and maintaining a safe, clean working environment.
Ideal for automotive parts, furniture, metal components, and other industrial finishing applications, this booth ensures smooth airflow, efficient overspray capture, and environmental compliance.
Key Features & Benefits
Water Curtain Overspray Collection
Uses a water curtain wall to capture paint particles and mist during spraying. Effectively reduces dust, overspray, and VOC emissions, providing a cleaner booth atmosphere.
Efficient Airflow & Exhaust
Designed with uniform airflow patterns for effective fume extraction. High-efficiency exhaust fans and ductwork ensure proper air circulation and safe ventilation.
Durable Stainless Steel Construction
Booth body made from corrosion-resistant stainless steel or powder-coated steel for longevity and easy maintenance. Precision-welded structure provides stable performance even under continuous operation.
Customizable Layout
Available in various sizes and configurations, including open front, closed type, or pass-through designs. Booth dimensions and airflow rates can be tailored to specific product sizes and process needs.
Water Curtain Spray Painting Booth – Application Areas
Automotive Components – Body panels, trim, and parts
Furniture & MDF Panels – Wooden, laminate, and engineered surfaces
Metal Hardware – Hinges, brackets, and fasteners
Industrial Machinery Casings – Enclosures and equipment covers
Decorative Items & Frames – Home décor, mirrors, and artwork
Ideal for OEM furniture manufacturers, and metal component suppliers seeking an efficient, high-quality wet paint finishing solution.
Advantages
- Improved air quality and worker safety in the spray area
- Effective removal of paint mist and fumes
- Water recirculation reduces consumption and costs
- Minimal environmental impact compared to dry filter booths
- Customizable layout to fit your production space and workflow
- Easy to clean and maintain
Frequently Asked Questions
Q: What is the advantage of a water curtain over a dry filter booth?
A: Water curtain booths provide continuous filtration without the need to replace filter media frequently. They also offer better control of solvent fumes and lower fire hazard, especially for solvent-based paints.
Q: How often does the water need to be changed?
A: With a filtration system, water can be reused for extended periods. Depending on usage, sludge removal and water top-up may be needed every 1–2 weeks.
Q: Is this system suitable for both manual and automatic spraying?
A: Yes, our booth supports both manual sprayers and automated reciprocating or robotic arms.
Q: What are the maintenance requirements?
A: Routine maintenance includes sludge removal, water level monitoring, pump inspection, and cleaning spray nozzles. A detailed guide is provided after installation.
